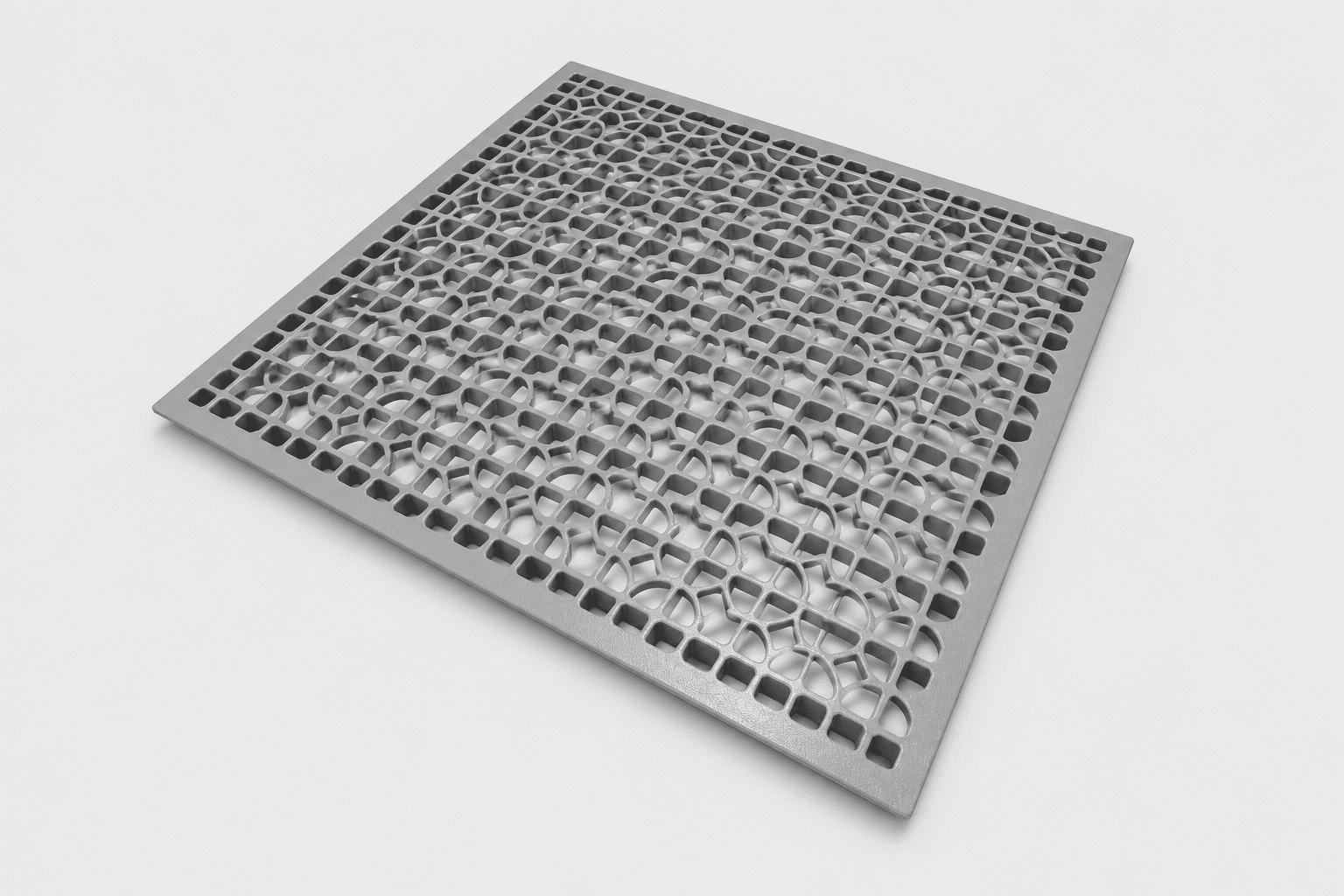

EziBlank High Airflow Floor Tile (APAC only)

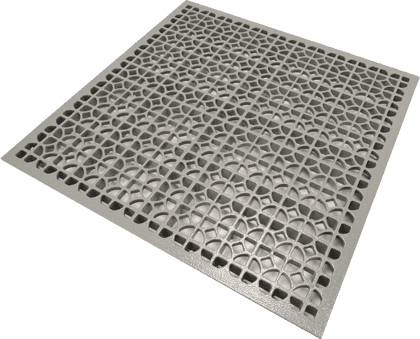

With a massive 55% open area, EZ-55 Cast Aluminium Floor Tile delivers more than twice the cold air volume to the server rack as ordinary perforated tiles. The built-in self-retracting lift handle makes it one of the easiest panels to lift and manage in the data centre. The EZ-55 has factory-applied, high durability light grey powder coat finish to prevent corrosion and this heavy-duty perforated panel can withstand a point load of over 4.5KN (1,000lbs per square inch) and a uniform distributed load of over 13.5KN (PSB test results available upon request).

The EZ-55 is also available with a louvred damper so you can adjust the volume of air needed for your particular application and equipment load. The louvred damper is adjustable from the top so you do not have to remove the tile to make those critical adjustments. The DC-55 damper assembly has a very small profile so the underfloor laminar air-flow is not affected.
