- Meets Cisca and BS EN 12825 Standards.
- 70° directional air flow directed to where you need it, reducing air loss.
- The only directional panel in the world made of cast aluminium.
- Extremely Durable Grey Hammer-tone powder coat finish to prevent corrosion.
- Comes with a Split Louvered Damper so you can adjust the volume of air.
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 60 × 60 × 6 cm |
Specs

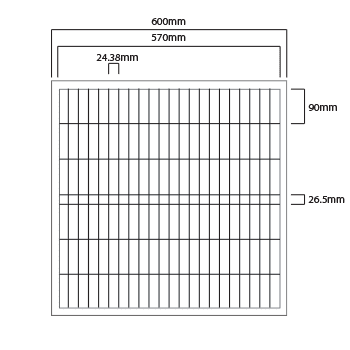

Dimensions: 600 x 600 x 55 (per tile, in mm)
Weight: 8.8 kg
Material: Cast Aluminium
Open Area: 65%
Standards: MOB PF2 PS, CISCA, BS

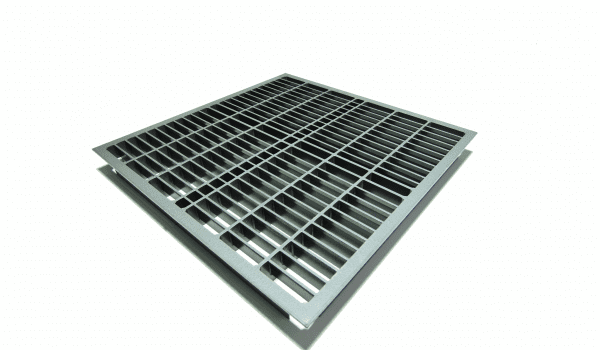

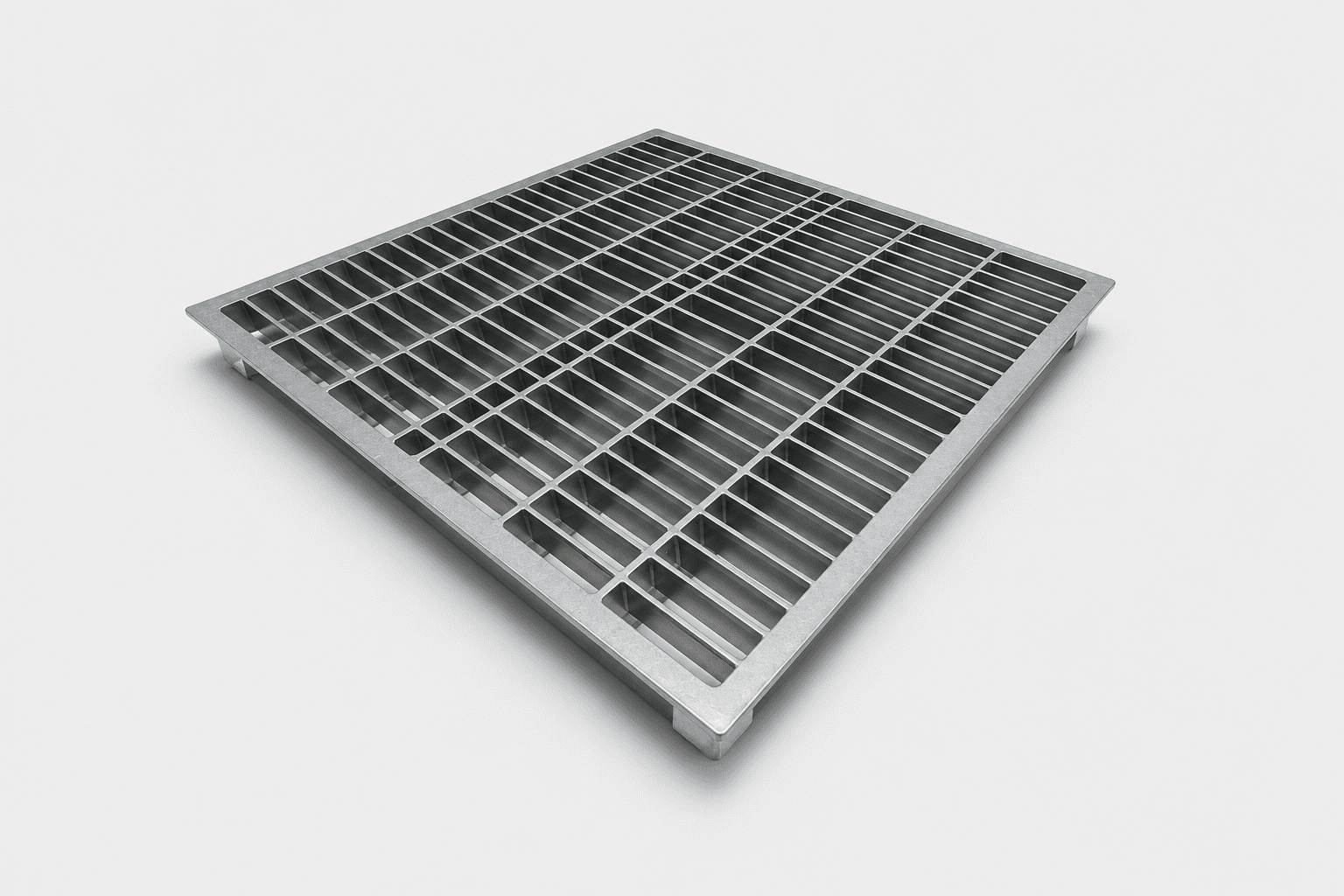

EziBlank Directional Airflow Floor Tile (APAC only)
EZ-68-D is a 70-degree directional tile that will put the cold air where you want it… directly into your server cabinet. A directional tile reduces air loss and the EZ-68-Directional tile and is a full 68% open area tile so you’ll get the maximum amount of air to cool those high-density servers. The EZ-68-D is the ONLY directional airflow panel in the word made of cast aluminium so there is no worry of zinc whiskers or rust … ever!
The EZ-68-D has a factory-applied, extremely durable, grey hammer-tone powder coat finish to prevent corrosion. The EZ-68-D meets the MOB PF2 PS, CISCA and BS EN 12825 standards for point load, uniformly distributed load and rolling load.
The EZ-68-D is also available with a split louvred (opposable-plate) damper so you can adjust the volume of air needed for your particular application and equipment load. The EZ-68-D damper has a slim profile so the underfloor laminar airflow is not affected.
Get A Quote
- Meets Cisca and BS EN 12825 Standards.
- 70° directional air flow directed to where you need it, reducing air loss.
- The only directional panel in the world made of cast aluminium.
- Extremely Durable Grey Hammer-tone powder coat finish to prevent corrosion.
- Comes with a Split Louvered Damper so you can adjust the volume of air.
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 60 × 60 × 6 cm |
Specs
Dimensions: 600 x 600 x 55 (per tile, in mm)
Weight: 8.8 kg
Material: Cast Aluminium
Open Area: 65%
Standards: MOB PF2 PS, CISCA, BS
